1x Rainscreen Hidden Siding Fastener Clips

The Complete 1x Hardwood Rainscreen Siding Fastener System

The DeckWise® 1x Rainscreen Hardwood Siding Fastener is fabricated from the high-quality marine grade aluminum for a burly and durable siding fastener that withstands the harshest of environments. Most impressive is that our rainscreen siding fastener system eliminates the need for furring strips all together.

Rainscreen fastener clips install directly over plywood or OSB exterior sheathing with a single stainless-steel screw providing a ¾” standoff for ventilation. This standoff creates the necessary ventilated wall cavity for proper moisture management. When it comes to water being trapped behind traditional furring strips, there’s no need to worry because the clip is the furring strip. Just consider how this hardwood siding fastener will cut your building costs without the cost of the furring strips and the cost to install them.

Our 1x hardwood rainscreen fastener system is designed to provide homeowners with a secure siding jacket that will shelter and protect from whatever extreme weather may outbreak.

For more information on our Rainscreen Hidden Cladding/Siding Fasteners, please be sure to contact us online or to call us directly at 941-896-9851.

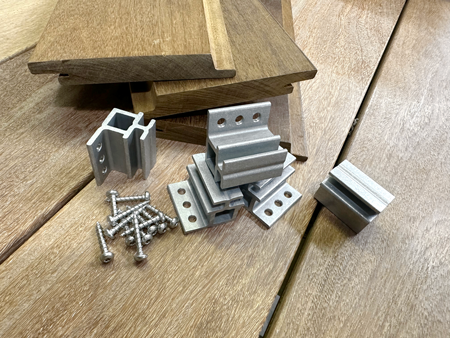

DeckWise® 1x Rainscreen Siding Fastener Kit Contains:

  • Starter Clips - NOT NEEDED!
  • Siding Clips (See below for amounts)
  • DeckWise® #9x1" or #9x1-1/2" Flat Pan Head Stainless Steel Screws
  • ttap® T-20 Driver Tips

TORX® and ttap® are the registered trademarks of Camcar Innovations.

Do It Once, Do It Right, Do It Out Of Sight!™

Hidden Siding Fastener kits from DeckWise
DeckWise warranty emblem

DeckWise® Rainscreen Hidden Siding Fasteners Limited Warranty

In order to be eligible to make a warranty claim, you must complete the registration for warranty here: www.deckwise.com/warranty/register.html

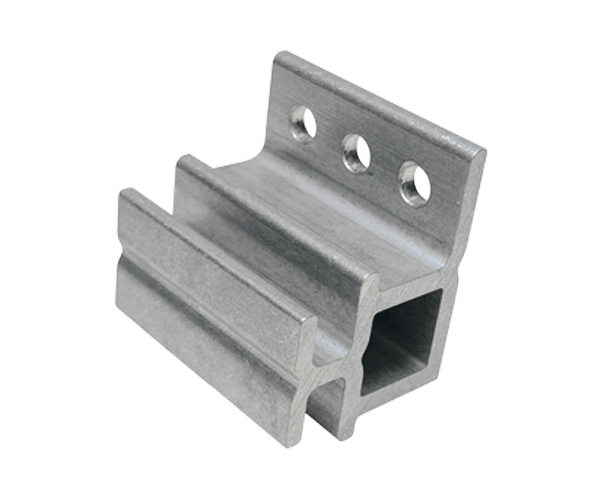

rainscreen hardwood fastener clip

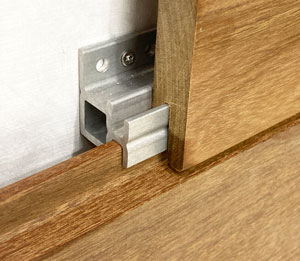

1x Hardwood Siding Fastener Installation

What’s most notable about the DeckWise® 1x Hardwood Rainscreen Fastening System is that, we have omitted the need for cumbersome starter clips or starter rails. The design of our rainscreen fastener and easiness of installation fashions the fastener clip to act as a starter clip. This means no more fumbling for multiple clip shapes and sizes. It couldn’t be simpler to install hardwood rainscreen siding.

Hanging vertical hardwood rainscreen siding for new builds, remodeling, and re-siding projects will give you peace of mind and no worries of loose boards for years to come.

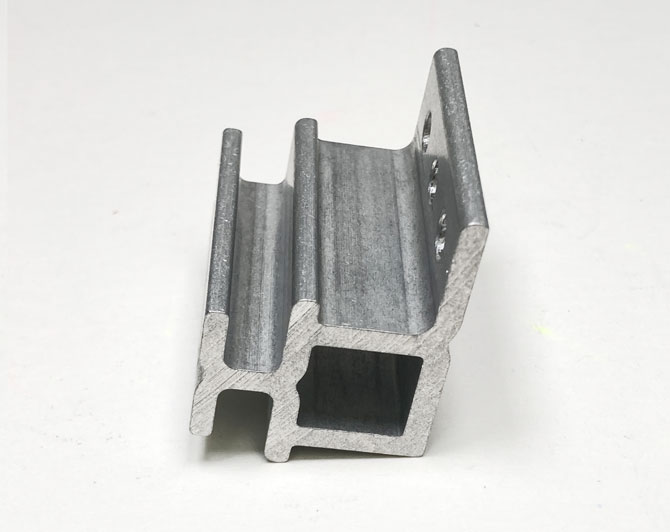

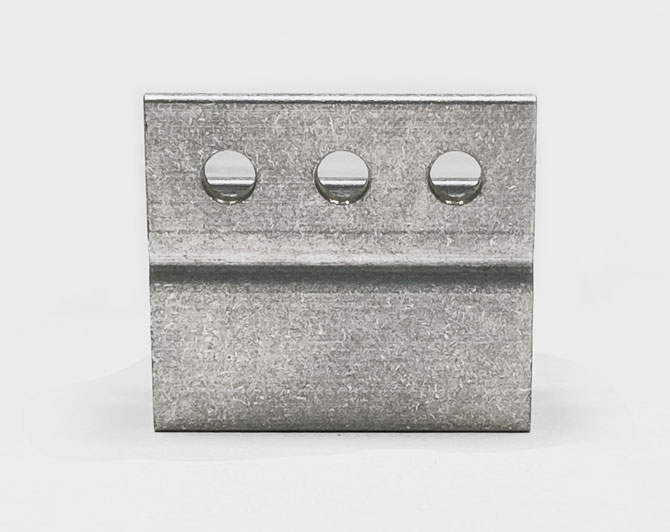

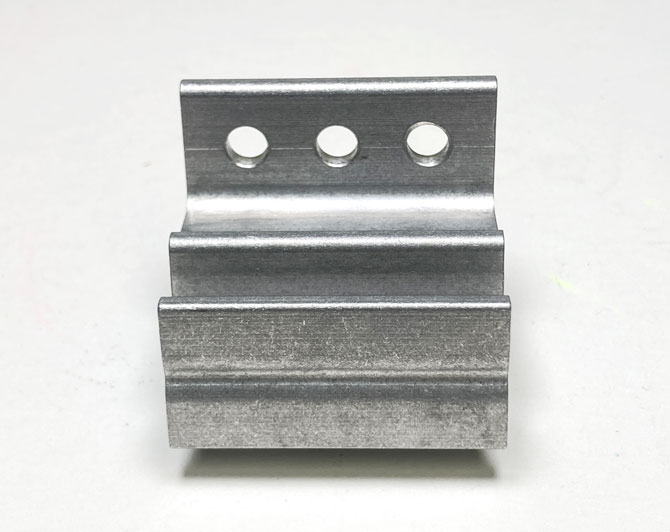

Our extruded aluminum siding fastener comes with 3 predrilled holes for easy mounting and weep valleys for water drainage ensuring joints stay dry. The wide mounting flange also provides a sturdy base to ensure that hardwood siding/cladding is properly seated. Stainless-steel screws used for installation work together with the aluminum siding fastener to stave off any possible corrosion or galvanic action.

The unique design of our 1x rainscreen siding clip makes it a cost-effective system for installing hardwood rainscreen profiled siding such as Ipe, Cumaru, Garapa, Western Red Cedar, and any other suitable species of hardwood.

Patent: Pending

Rainscreen 1x Siding Fastener Kit Contents

Install hardwood siding with no visible fasteners on the surface. See below for available quantities.

Hidden Siding Fastener Clips
DeckWise® 1x Rainscreen Siding Fasteners

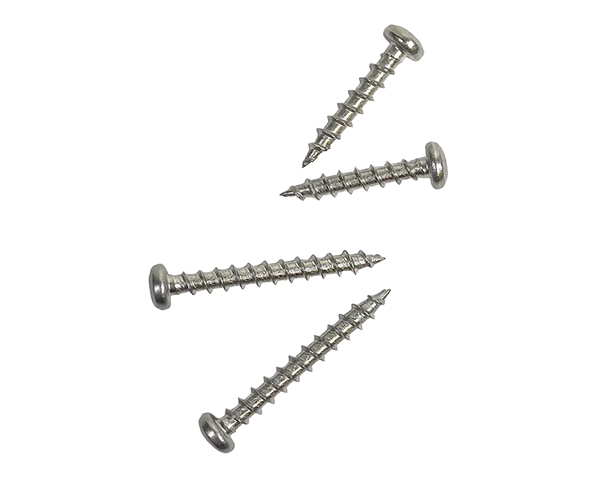

Stainless Steel Trim Head Screws
#9x1"or #9x1-1/2" Stainless Steel Flat ttap® Pan Head Screws
T15 Driver Tip from DeckWise

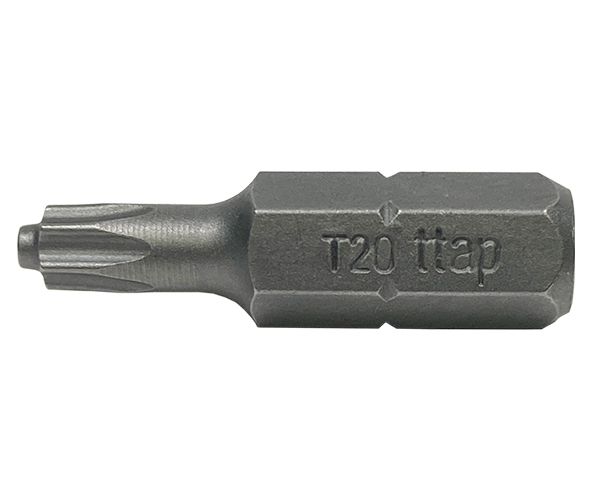

T-20 ttap® Driver Tip

How to Install

DeckWise® Hidden Rainscreen Siding Fasteners for hardwoods are easy to install and can help extend the life of your hardwood siding. Our unique design mounts on the edge of the siding boards rather than through the face so your finished project is not only great looking, but also smooth and more structurally stable.

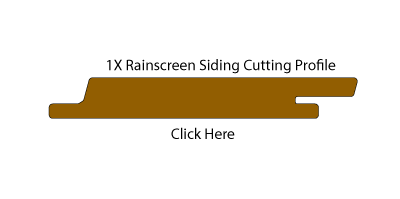

  Download Install Guide   Download 1x Rainscreen Profile

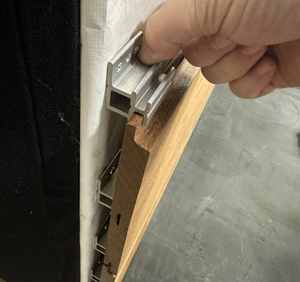

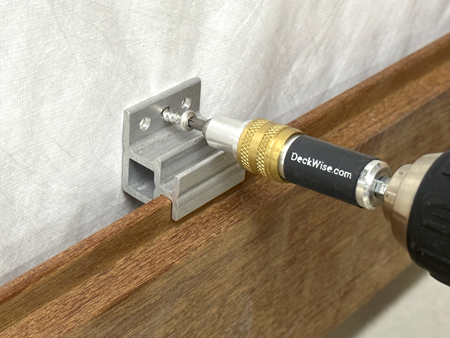

Installation Process

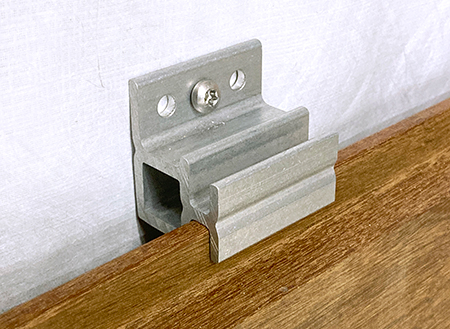

rainscreen siding clip 1x hardwoods

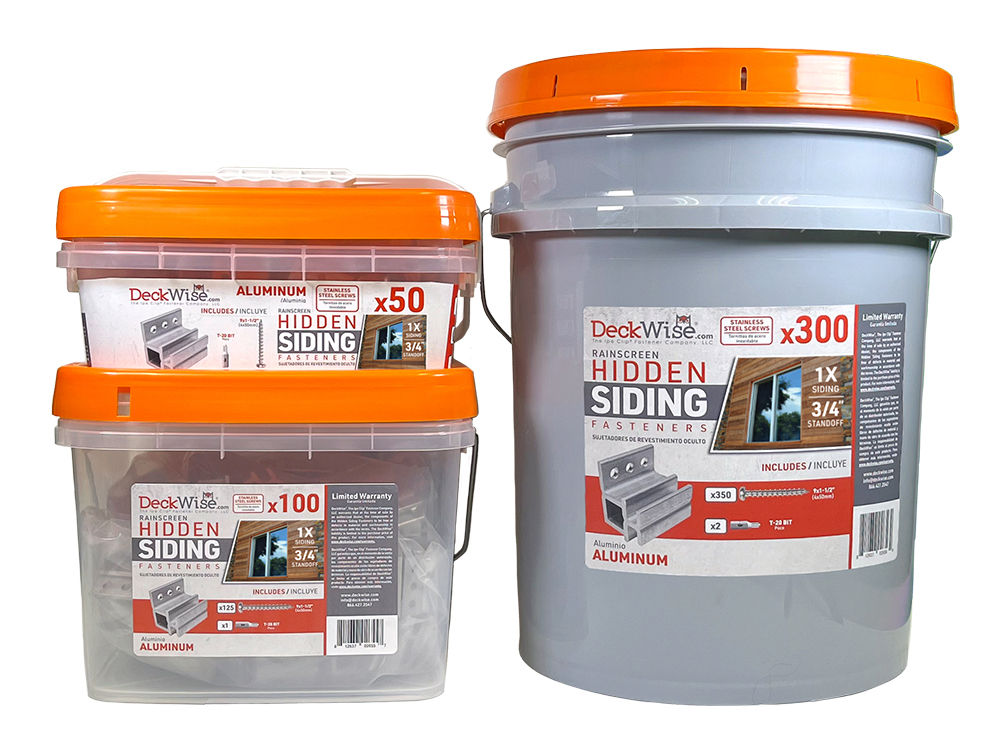

Available Kit Options

DeckWise® 1x Hardwood Hidden Siding Fasteners are available
as complete kits in the following quanitities:

Rainscreen 1x Fasteners


  • 60
    #9x1" or #9x1-1/2" Flat ttap® Pan Head
    Stainless Steel Screws
  • 1 – ttap® T-20 Driver Tip

Rainscreen 1x Fasteners


  • 125
    #9x1" or #9x1-1/2" Flat ttap® Pan Head
    Stainless Steel Screws
  • 1 – ttap® T-20 Driver Tip

Rainscreen 1x Fasteners


  • 350
    #9x1" or #9x1-1/2" Flat ttap® Pan Head
    Stainless Steel Screws
  • 2 – ttap® T-20 Driver Tips

Discover the difference a smart deck makes with DeckWise®. Contact your local dealer, or call us direct at 941-896-9851 today to get build a smart deck with these professional grade colored stainless decking screws.

TORX® and ttap® are the registered trademarks of Camcar Innovations.

DeckWise Hardwood Aluminum Rainscreen 1x Siding Fastener Clips and Stainless Steel Screws.
