Ipe Clip® ExtremeKD® Hidden Deck Fastener

Ipe Clip® ExtremeKD® Fastener Systems

Kiln Dried Lumber, & Composites Gap Spacing 1/4"(6,4mm)
The 100 clip kit will cover 50 sq. ft. & the 175 clip kit covers 100 sq. ft.

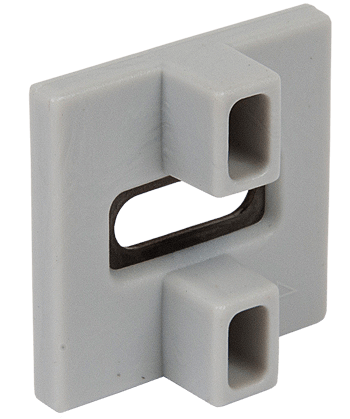

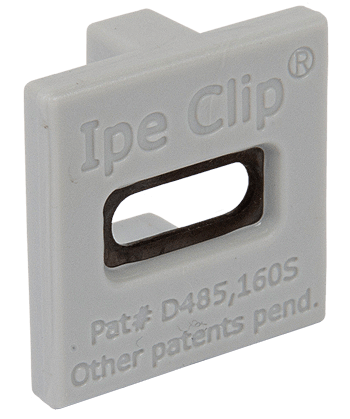

Ipe Clip Extreme KD Hidden Deck Fasteners
Ipe Clip Hidden Deck Fasteners Extreme KD
* Color - Composite Grey
Features:
  • This system automatically spaces deck boards at 1/4" (6,4mm)
  • Manufactured from polyethylene with stainless steel black oxide insert
  • For use with kiln dried hardwood, composite, or PVC decking
  • Allows for expansion of width of kiln dried hardwoods
  • Allows movement of length with composite/PVC decking
  • Unique design allows for more tolerance in grooved side profile while increasing hold-down area
  • UV resistant
  • Hollow leg acts as a shock absorber as kiln-dried materials expand
  • Limited Lifetime Warranty
  • Do It Once, Do It Right, Do It Out Of Sight!™

* Ipe Clip® Kit variations come in standard 100 and 175 complete counts. All deck screws available may be substituted for various head-colors, lengths and styles.

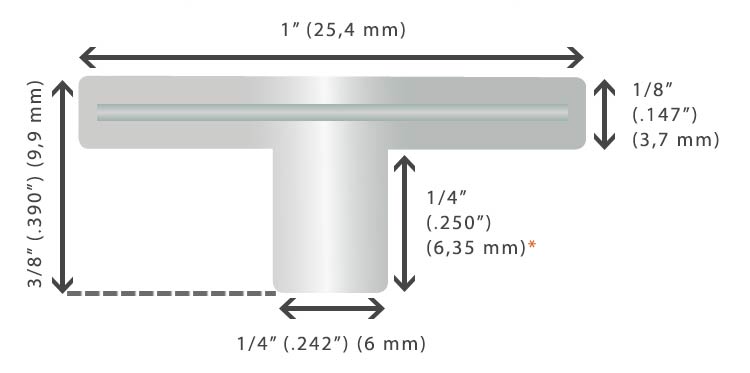

Fastener Dimensions
Ipe Clip Hidden Deck Fastener ExtremeKD Dimensions
Clip Construction
MaterialStainless Steel InsertAvailable Color
Polyethylene .883" x .883" Thickness: .036"
(22,4mm x 22,4mm Thickness: ,9mm)
DeckWise Hidden Deck Fasteners
Decking Compatibility
Air-Dried DeckingKiln-Dried DeckingComposite / PVC Decking
Resources for Architects & Builders
CSI Divisions & Specs
DeckWise warranty emblem

DeckWise® Ipe Clip® Limited Warranty

In order to be eligible to make a warranty claim, you must complete the registration for warranty here: www.deckwise.com/warranty/register.html

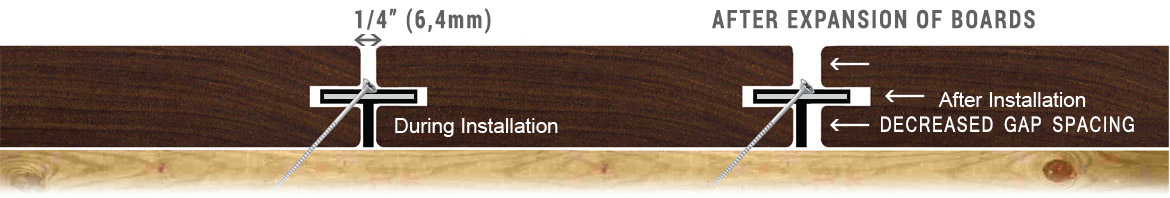

Allows Expansion on the Width of Kiln-Dried Hardwoods

The method of 45 degree screws hold the decking tight to the joist, while allowing one side of the deck board to remain free to expand.

Ipe Clip Hidden Deck Fastener ExtremeKD Expansion Diagram

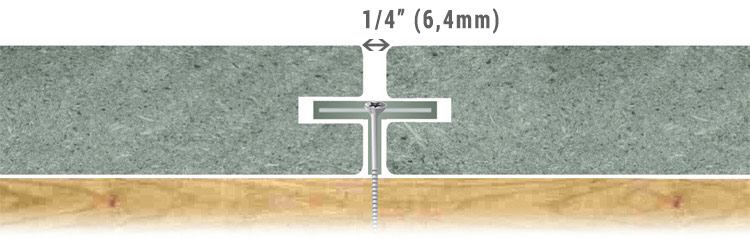

Allows Expansion/Contraction Along the Length of Composite/PVC Decking

Running screws straight down with composite/PVC decking allows these materials to naturally move on their length.

Ipe Clip Hidden Deck Fastener ExtremeKD Expansion and Contraction Diagram
Composite decking expansion

DeckWise® ExtremeKD® Installation Specifications

Ipe Clip Hidden Deck Fastener ExtremeKD Installation Specifications
Decking Compatibility
Board ThicknessBoard Width
A* = Measurement Of Your Decking B** = Measurement Of Your Decking

DeckWise Ipe Clip - Extreme KD Fastener System - 1/4" Spacing - GRAY CLIPS - for Kiln Dried Decking - 175 pc Box for 100 Sq. Ft. of Decking - (Includes 8 x 2" Stainless Steel Screws)

Groove Dimensions
Thickness of CutCutting HeightCutting Depth
C = 5/32" (4mm) D*** = (A-5/32")/2 E = 1/2" (13mm)
Board Spacing
During Installation
F**** = 1/4" (6,4mm)

* If using 1-1/2" (38,1mm) or thicker material, you may need to upgrade to a longer screw option than what is typically packaged with the fastening kit.

** For decking 8" (20,32cm) or wider, the (A) dimension should be at least 1-1/2" (38,1mm). Using a wide plank such as this for surface decking will most likely cause cupping issues regardless of how the material is fastened if thicker material is not used.

*** This formula will create a symmetrical profile that allows you to flip and/or rotate the decking to be able to put the best side up.

**** Fastener automatically achieves correct gap spacing when boards are pushed tight during installation.

Available Kit Options

Boxes of Ipe Clip® Fastener Kits come in many combinations. Kit variations of 100 (50 sq. ft.) and 175 (100 sq. ft.) counts are easily customized with variations of decking screws different styles, length and color.

Ipe Clip Hidden Deck Fasteners Kit from DeckWise

Complete Kit

  • (175) Ipe Clip® ExtremeKD® Hidden Deck Fasteners
  • (190) #8x2" (4x50mm) Stainless Steel T15 - Star Drive Screws
  • (12) 3/8" (9,5mm) Tapered Ipe plugs
  • (1) 1/8" (3,2mm) High Speed Drill Bit
  • (1) T15 Star Driver Tips
  • (3) 1/4" (6,4mm) Spacer Tools
  • (1) Instruction Sheet

100 Count

  • (100) Ipe Clip® ExtremeKD® Hidden Deck Fasteners
  • (100) #8x2" (4x50mm) Stainless Steel T15 - Star Drive Screws
  • (3) 1/4" (6,4mm) Spacer Tools
  • (1) Instruction Sheet
DeckWise Hidden Deck Fasteners Contractor Bucket

2 Gal. Contractor Bucket

  • (525) Hidden Deck Fasteners
  • (570) #8x2" (4x50mm) Stainless Steel T15 - Star Drive Screws
  • (6) 1/4" (6,4mm) Spacer Tools
  • (3) T15 Star Driver Tips
  • (3) 1/8" (3,2mm) High Speed Drill Bit
  • (1) Instruction Sheet

5 Gal. Contractor Bucket

  • (1050) Hidden Deck Fasteners
  • (1140) #8x2" (4x50mm) Stainless Steel T15 - Star Drive Screws
  • (6) 1/4" (6,4mm) Spacer Tools
  • (5) T15 Star Driver Tips
  • (5) 1/8" (3,2mm) High Speed Drill Bit
  • (1) Instruction Sheet

EXTREME® Ipe Clip® Series - U.S. Patent Numbers 8,464,488 and 8,806,829.
Original, “round”, STANDARD Ipe Clip® - U.S. Patent No. D470,039.

EXTREMEKD® and EXTREME4® Licensed under U.S. Patent Nos. 7,874,113 and 8,161,702 Patent.

Everything you need to get the job done!

Ipe Clip Hidden Deck Fastener ExtremeKD
ExtremeKD®
Stainless Steel Screws from DeckWise
Stainless Steel Screws
Deck Board Spacers
Spacers
T15 Star Drive Tip
T15 Star Drive Tip
1/8" Drill Bit
Tapered Ipe Hardwood Plugs
3/8" Tapered Ipe Plugs
