Deck Building Drill & Drive™

3-in-1 Decking Tool Kit

The Drill & Drive™ is a 3-in-1 tool you can use to pre-drill, countersink, then flip the insert and drive screws into decking. The ease of use makes pre-drilling hardwoods and installing deck screws 3 times faster than standard drilling & driving.

Residents of California: please see Proposition 65 information & warning

Drill and Drive Logo

Do the smart thing.
Build a smart deck with DeckWise!®

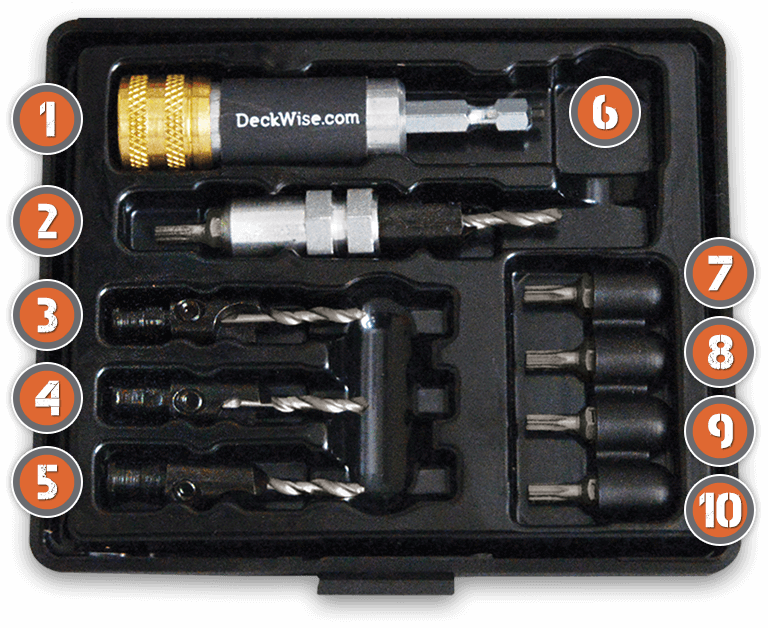

Every Kit Includes:

  1. Quick Change Locking Collar
  2. 1/8" (3,2mm) high speed drill bit & 3/8" (9,5mm) Countersink Tool w/ T15 Star Drive Tip
  3. 1/8" drill bit & 3/8" countersink
  4. 1/8" drill bit & 3/8" countersink
  5. 1/8" drill bit & 3/8" countersink
  6. On-Board Hex Key
  7. T15 Star Drive Tip
  8. T15 Star Drive Tip
  9. T15 Star Drive Tip
  10. T15 Star Drive Tip
Drill and Drive 3 in 1 Decking Toolkit

Wise Up! Speed Up Deck Building with the Drill & Drive™

The 3-in-1 tool that makes drilling and driving up to 3x faster.

How It Works

Deck builders, once you start using the Drill & Drive™ toolkit, you'll quickly realize how much faster and more productive every single deck install will be in the future. For homeowners, the Drill & Drive™ system can be used for more than deck building. It's utility makes it the perfect solution for home touch-up, or home renovation project.

How the Drill and Drive works
STEP 1: Installing the first deck board

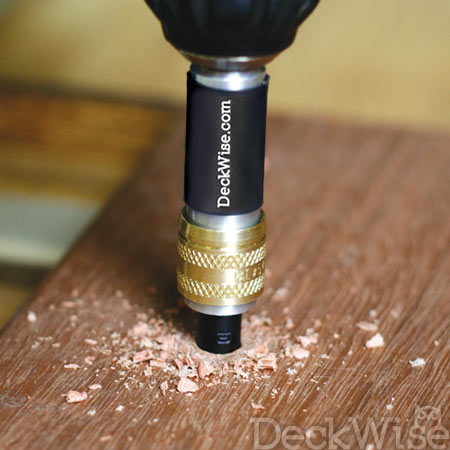

With the Drill&Drive™ 1/8” drill bit and countersink, drill a hole for the initial face-driven screws along the back edge of the starter board, parallel to the ledger board. Continue drilling allowing the 3/8" counter-sink bit to bore a hole approximately 1/4" to 3/8" deep (depending on your deck board thickness) for each top-side down fastening screw.


How the Drill and Drive works
STEP 2 - Drive a deck screw into the countersunk hole

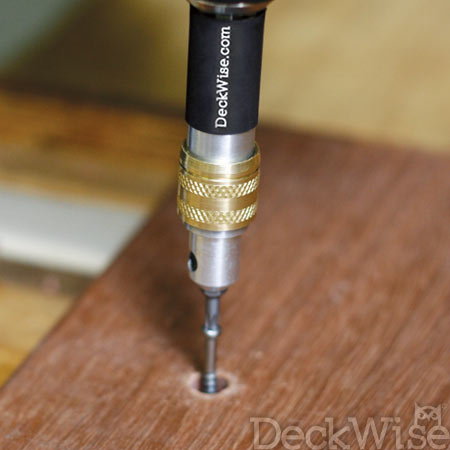

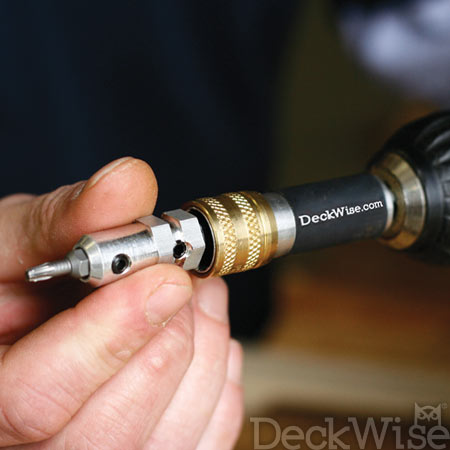

Easily unlock the Quick Change Collar to flip the Chuck around to use the T15 Star drive bit and lock into place. Securely drive a stainless steel deck screw down into the countersunk hole into the ledger board below.

How the Drill and Drive works

How the Drill and Drive works

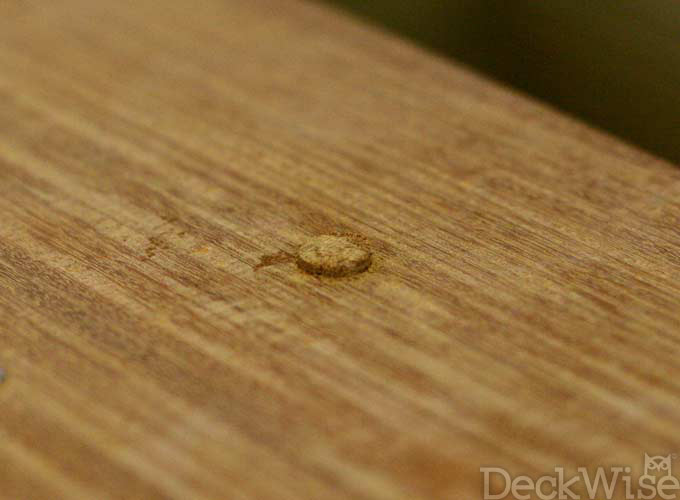

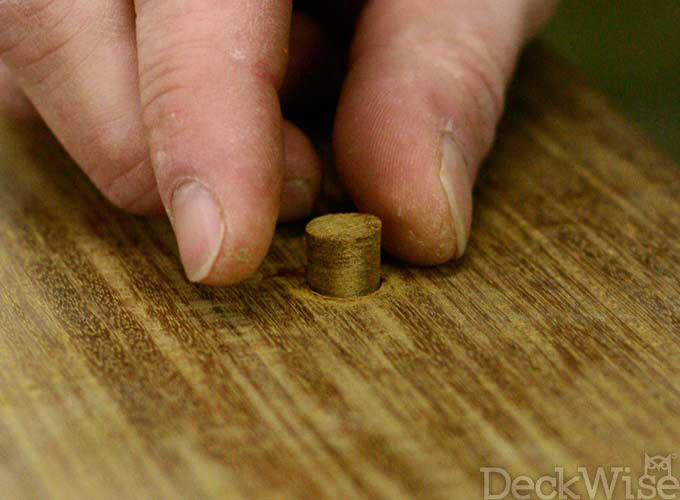

STEP 3: Insert a hardwood plug

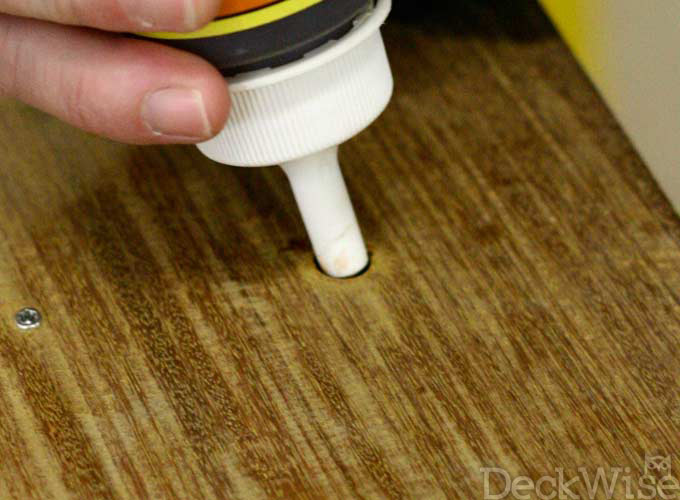

Place a drop of glue (polyurethane based recommended) into the countersunk hole. Insert a hardwood plug, tamp down tight, and flush cut with a hand saw, belt sander or an orbital sander with 80 grit sand paper. Wipe away any excess glue that may squeeze out. This glue will secure the hardwood wood plug from popping up and will act as a moisture barrier, sealing the hole and deck screw.

How the Drill and Drive works

How the Drill and Drive works
How the Drill and Drive works
STEP 4: Install Ipe Clip® Hidden Deck Fasteners

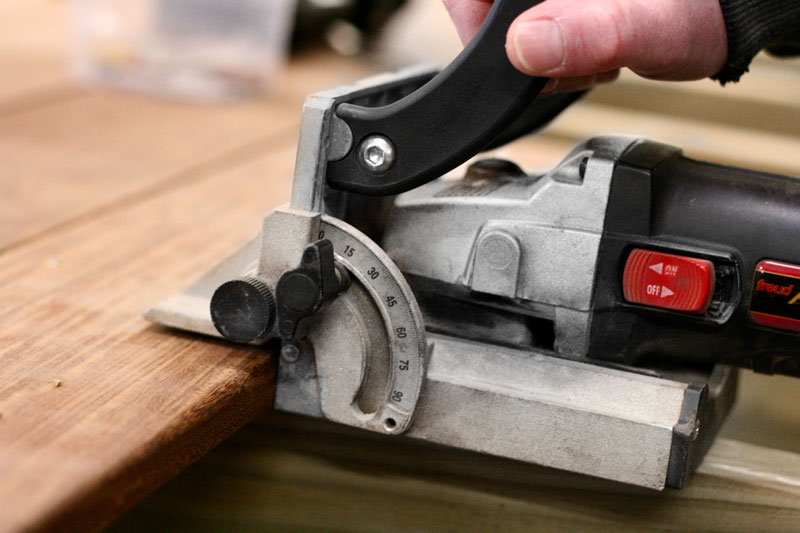

NOTE: If not installing pre-grooved decking, use a biscuit jointer or a router (with a 5/32 " X 1/2 " slot cutting bit) to cut a slot in the edge of deck board above each joist. You will want to center this groove in the board edge so there is a symmetrical profile.

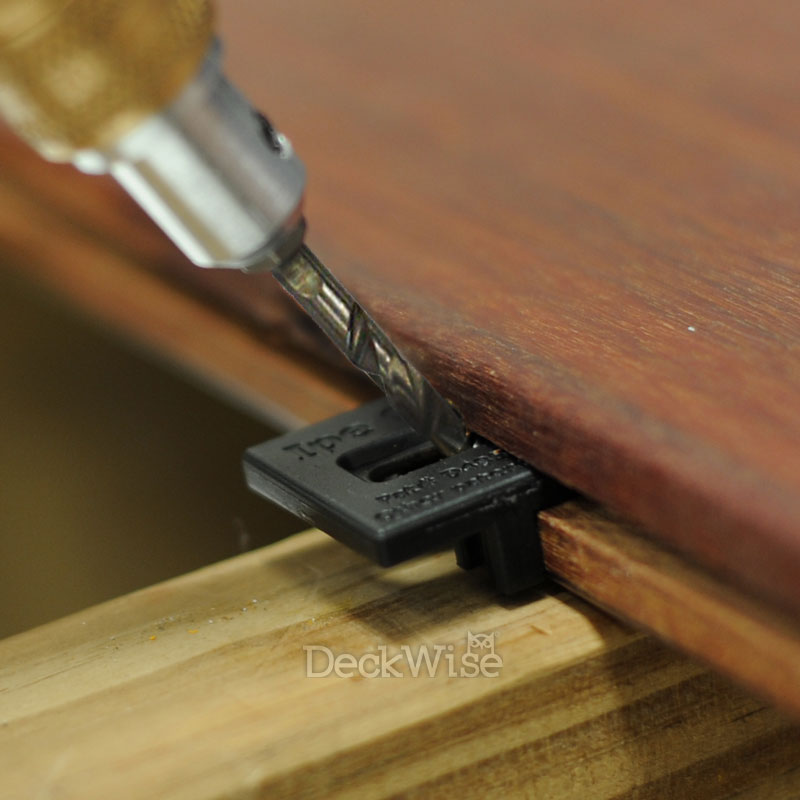

Unlock and flip the Quick Change Collar and Chuck to use the 1/8” drill and countersink bit. Insert one Ipe Clip® fastener into the board groove above each joist. Pre-drill a 1/8 " pilot hole at a 45° angle through the Ipe Clip® fastener, down into deck board bottom groove. This pre-drill will ensure the board will not crack.

Quickly unlock and flip the Quick Change Collar to the T15 Star drive bit and drive a stainless steel deck screw down into the pilot hole to secure the hidden deck fastener. Repeat until all hidden deck fasteners are installed and the last deck board is ready to be installed.

How the Drill and Drive works
How the Drill and Drive works

Install the last deck board
STEP 5: Install the Last Deck Board

Repeat Steps 1-3 to fasten the outer deck board.

Tips & Bits

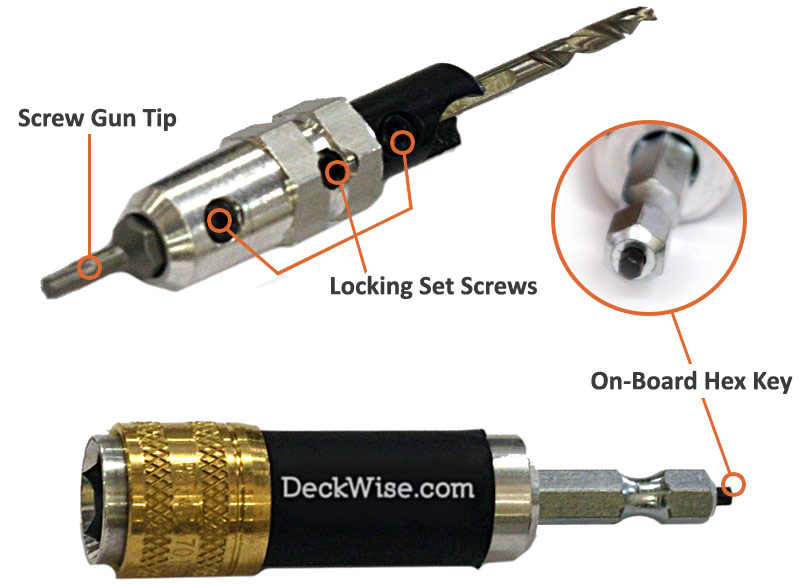

Adjustable pilot hole and counter-sink drill bit system. Use to countersink screws for drilling plug holes with pilot holes all in one step.

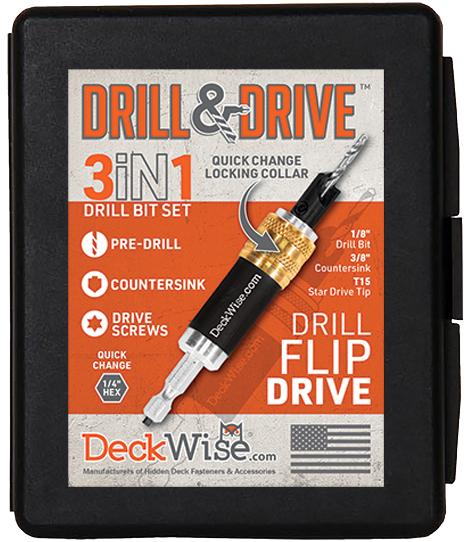

Drill and Drive Case
DeckWise Drill & Drive™ Tool for Pre-drilling, Countersinking & Driving Decking (Hardwood, Composite, PVC, Pressure Treated)
*Replacement Tips T15 Star Drive Tip
*Replacement Bits 1/8" drill bit & 3/8" countersink
*Sold separately
Drill and Drive Drill Bits and Tips
