Drilling Corner Holes Into Deck Tiles

Method 1

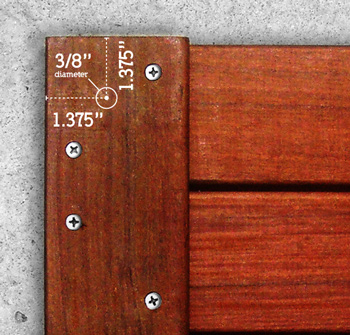

Measure 1-3/8" from either edge of the deck tile. Use a 3/8" drill bit to make a hole in the bottom of the deck tile. A drill stop is recommended to make sure you do not drill through the top surface of the deck tile.

Drill Corner Holes into Tiles Method 1

Method 2

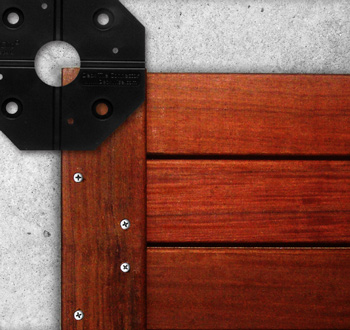

Alternatively, you can use the corner of your DeckWise® deck tile connector as a guide to mark the center of the hole to be drilled. Double check your measurements before drilling and make sure you do not drill through the top surface of the deck tile.

Drilling Corner Holes into Tiles Method 2

How To Cut Deck Tiles

Watch the video below to learn how to properly cut, drill, and refit DeckWise® Hardwood Deck Tiles for custom installations.
